Steel Buildings in New Braunfels, Texas

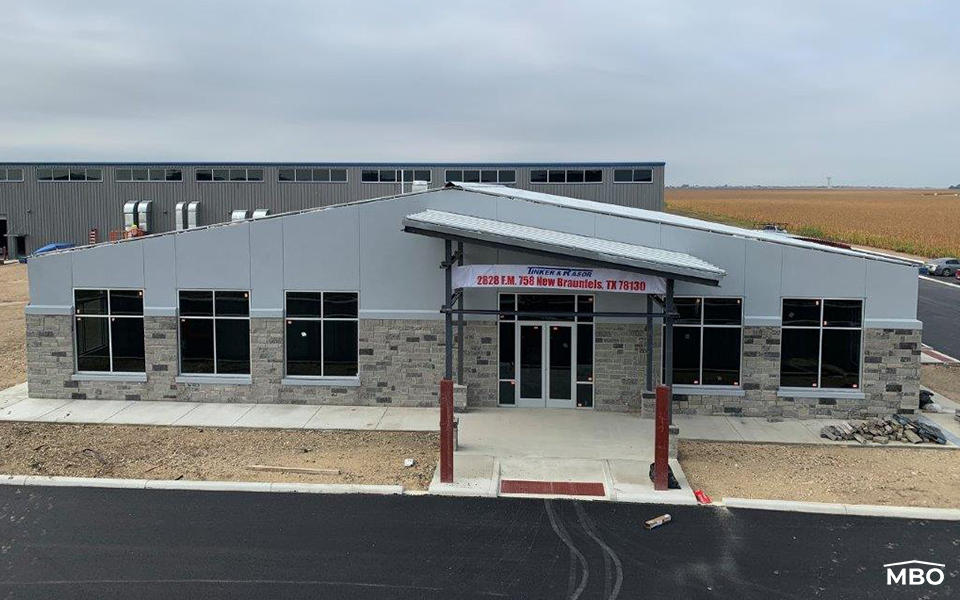

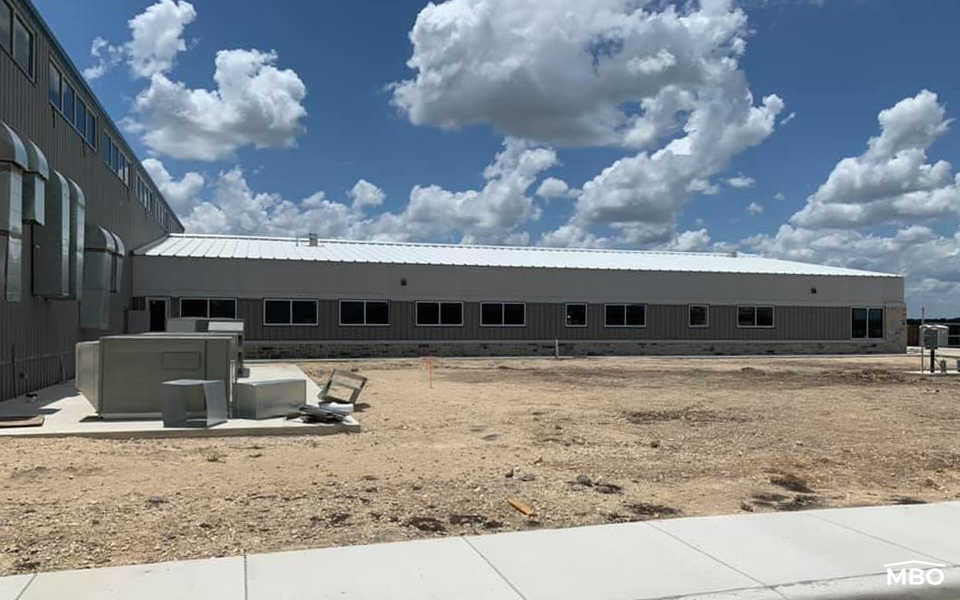

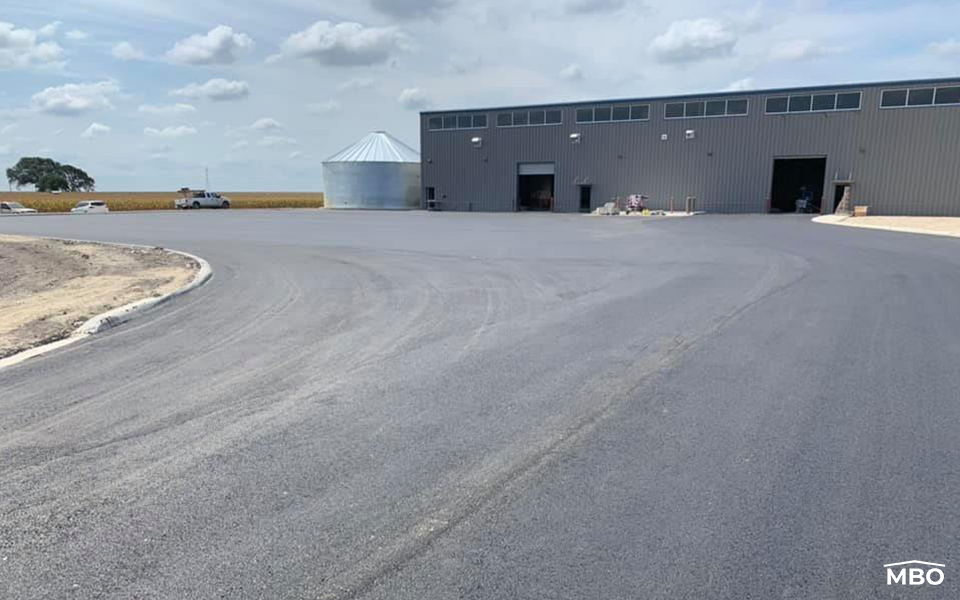

Metal Building Outlet supplied these commercial steel buildings to New Braunfels, Texas in 2019. The buildings were designed to function as the new campus of Tinker & Rasor. The company was relocating from its location of 70 years in California to Texas to expand its operations. The project consisted of two joined structures that formed one large building; a campus consisting of a manufacturing facility and administrative offices.

This project was directed by MBO project manager, Christina Logan. With her expertise of designing expansive metal buildings that require in-depth knowledge of steel framework and the requirements of large-scale buildings, she guided this project with perfection. Ms. Logan successfully formulated a comparative analysis of the red iron framework with detailed metal infrastructure which aided with the combined building and construction applications.

Considered part of Greater San Antonio, the city of New Braunfels is located in both Comal and Guadalupe counties. The community sits about 32 miles outside downtown San Antonio and about 40 miles east of Helotes.

Building Information and Special Features

Building 1 Size

90’10”x140’5”x15 w/ 2:12 Roof Pitch

Building 2 Size

100’x315’ 1½”x29’6” w/ 1.5:12 Roof Pitch

Roof Sheeting

24 Gauge 16” Standard Kynar White Finish with BattenLok HS Panels

Wall Sheeting

26 Gauge Architectural

Wind Speed

115 MPH

Snow Load

5 PSF

Doors

Numerous Walk Doors & Overhead Doors

Windows

Numerous Custom Window Configurations

Insulation

Roof: R-19 Faced and R11 Insulation UnFaced Combined with 6″ Double Layer-Tall Panel Clips with Thermal Blocks
Walls: R-19 Faced and R11 Insulation UnFaced Combined with 4″ Double Layer-Tall Panel Clips with Thermal Blocks

Other Features

Louvers throughout the building.
Sculpted Eaves and Rakes
Custom Wainscotting on Exterior
Interior Sprinkler System in the Ceiling

County

Comal and Guadalupe County

Tinker & Rasor is an electronics firm that has successfully engaged in the design, development, and manufacture of Holiday Detectors, Detection Pipe & Cable Locators, and Fluid Leak Detectors, plus a sizable line of Cathodic Protection Instrumentation.
